- Detection - Measurement
- Flow, Pressure and Level Measurements
- Silicon pressure transducer
- ADTEK Electronics Co., Ltd

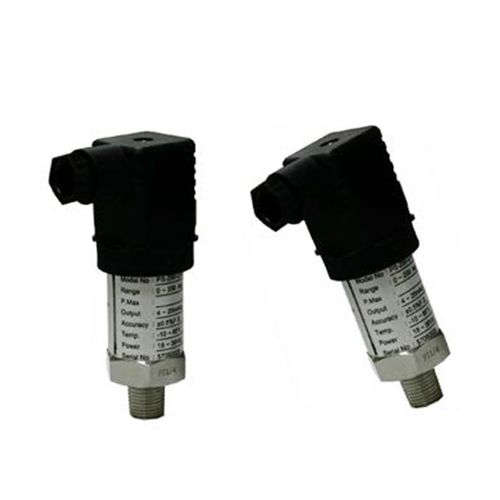

Silicon pressure transducer PS24-20 mAvoltage output0-10 V
Add to favorites
Compare this product
Characteristics
- Technology
- silicon
- Output
- 4-20 mA, voltage output, 0-10 V, 0-5 V, 1-5 V, RS-485, 2-wire
- Supply voltage
- DC
- Mounting
- threaded
- Process connection
- NPT 1/4, G 1/4, G 3/8, M14 x 1,5, NPT 1/2
- Material
- stainless steel, steel
- Protection level
- IP65
- Applications
- for HVAC systems, for water treatment, for hydraulic applications, for compressors, for pneumatic applications
- Other characteristics
- precision, high-sensitivity, temperature-compensated
- Pressure range
Max.: 100 bar
(1,450.38 psi)Min.: -1 bar
(-14.5 psi)- Precision
0.5 %
- Long-term stability
0.3 %
- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
PS2
Pressure Transducer
FEATURES:
- Digital temperature compensation and nonlinear correction
- High sensitivity, high precision, high stability
- Full temperature compensation, good electrical performance and long-term stability
- The plug and shell are integrally spin-stable, stable and waterproof, to avoid loosening the thread of ordinary plug
- A variety of signal outputs, convert the pressure of the measured medium into 4~20mA, 0~10VDC analog signals, RS485 digital signals
- With RS485 communication interface, the monitoring system can easily read the measured value
- The shell adopts laser welding, high reliability, long life, long-term stability and reliability
