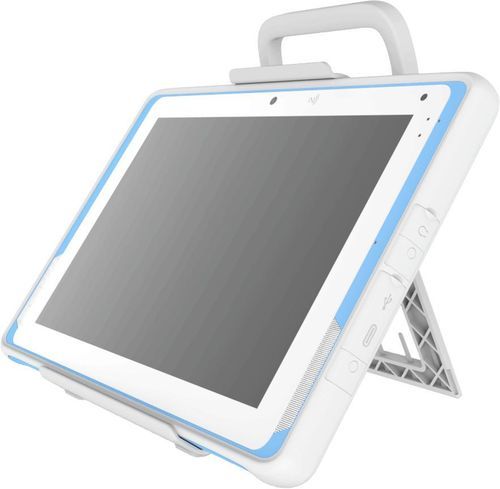

Windows 10 tablet AIM-68H series

Windows 10 IoT EnterpriseWindows 11Linux

10.1" Medical-Grade Tablet - Intel® N200 processor support on Windows10/11 Enterprise for high performance - 10.1" WUXGA projected capacitive 10-point multi-touchscreen with anti-fingerprint, anti-glare Corning® Gorilla® Glass - EN/UL 60601 certification, ensuring patient and medical staff safety by protecting against excessive heat and electronic interference - Equipped with DeviceOn iService suite software for remote device management - Built-in Barcode Scanner/NFC Reader provide accurate patient data capture - LPDDR5 RAM/m.2 NVMe SSD support Rapid Access to Critical Patient Data - IP65-rated protection from water and dust ingress - Shock/Vibration compliance with 4-ft drop tolerance - Built-in Wi-Fi 6E, Bluetooth 5.3 for high speed connectivity Certifications: - BSMI, CCC, CE, FCC, UL, IEC60068-2-6, UKCA, Wi-Fi, Windows Embedded Key Specifications: - Processor: Intel® N200 Processor quad-core (6M Cache, up to 3.70 GHz) - Memory: 8GB DDR5 - Storage: m.2 NVMe SSD 128 GB (256GB Optional) - Display: 10.1" IPS LCD, WUXGA 1920 x 1200, 800 cd/m2 brightness - Touch: 10-point multi-touch P-CAP, Corning® Gorilla® Glass 3 (Anti-Fingerprint, Anti-Glare), Normal/Glove mode - Operating System: Windows 10/11 IoT Enterprise (Linux OS Optional) - Wireless: Wi-Fi 6E (IEEE 802.11 a/b/g/n/ac/ax), Bluetooth® v5.3, NFC (13.56 MHz, ISO15693, ISO14443A/B, FeliCa) - I/O Ports: 1x USB3.1 Type-C (Charging & DP), 1x USB 3.1 Type-A, 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power, 1 x AIM docking 16-pin pogo connector (1 x USB 3.0, 12V power) - Audio: 2 x Internal waterproof speakers (2 W), 1 x Audio combo jack (stereo output/mono mic input) - Cameras: Rear: 13.0-megapixel auto-focus with LED flash; Front: 5 megapixel fixed-focus - Sensors: Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope - Battery: Smart battery with LED indicators; 11.55V, 4010mAh, 46.31Wh; Up to 5.5 hours operation; Charging time: < 3 hours - Ruggedness: IP65, 1.2M drop, IEC60068-2-27 & IEC60068-2-64 shock/vibration - Operating Temp: 0 ~ 40 °C (32 ~ 104 °F); Storage: -20 ~ 60 °C (-4 ~ 140 °F) - Humidity: Operating: 95% @40°C non-condensing; Storage: 95% @60°C non-condensing - Dimensions: 280 x 18.3 x 180.1 mm (11 x 0.7 x 7.1 in) - Weight: 1.1 kg (2.4 lb) - Color: White/Blue - Security: TPM 2.0 - Warranty: 2 years - Certifications: FCC, CE, UKCA, IEC/EN/UL60601-1, EN 60601-1-2, TELEC, VCCI, CCC, RCN, IC
