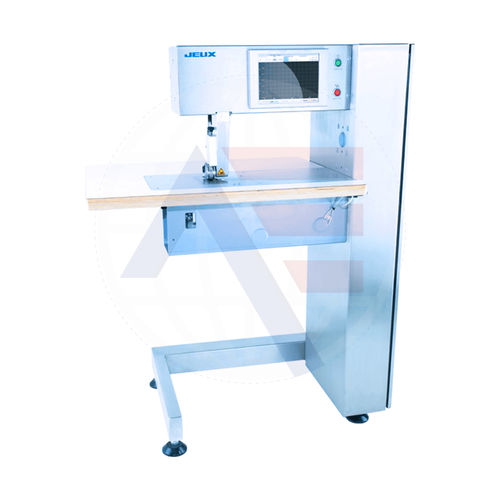

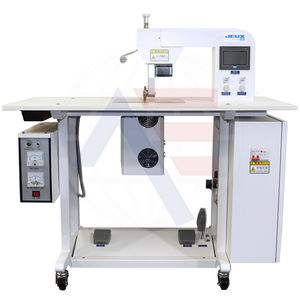

Ultrasonic welding machine JEUX-7510S

textilecustom

A modern ultrasonic welding-machine needs performance, flexibility, and must be easy to operate. The new JEUX-7510 uses high-tech components to make precise working at the highest level possible. Numerous features allow an individual machine configuration from maximum productivity and reproductivity in serial production. The new JEUX-7510 sets a new standard in the world of welding products. This includes the brand-new software package, which facilitates operation for both beginners and experienced professionals. The newly developed JEUX-7510 ultrasonic-package ensures absolutely precise and constant amplitude-values even at high speeds and sensitive materials. • A wide range of anvil wheels allows embossing of any profile or welding structure • No compressed air required • Newly developed user-interface and custom software • Cutting and welding functions possible (S Type) • Flatbed allows for easy and large working area • Up to 12m/min welding speed possible • Made in Germany • Sonotrode - JEUX-7510S - 10mm width cutting sonotrode • Contact pressure - Digital pressing-device with 350N pressure (no compressed air) • Velocity - Max. 12m/min (39ft/min) • Number of actuations - 2 • Seam width - Max. 10mm (0.39 inch) • Power supply - 230V (50Hz) • Air pressure - Not required
