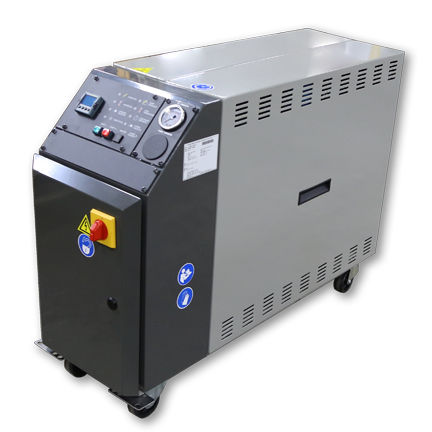

LED temperature control unit TDV series

PIDstandardimmersion

Troublesome cooling circuit leaks in processes can result in serious production losses. The leaks may be due to small stress cracks, which leak under pressure. Our Positive/Negative Pressure TCU uses a liquid venturi to draw cooling water through the mold under negative pressure. Precise temperature control is provided by the operation of a solid state or microprocessor controller, which activates a heater or a cooling water solenoid as required. Standard Features • Off-the-shelf microprocessor-based PID temperature control with Process and Set Value LED readout • Graphic control panel with indicating and warning status lights • Operating range of 32ºF to 180ºF (0ºC to 82ºC) • Open reservoir vented to atmosphere • Single stage Incoloy™ immersion heater with IEC mechanical contactors • 1/4” cooling solenoid valve (Cv=0.85) • Hi/low level sensor with 3/8” makeup solenoid valve • Low supply water pressure switch • 150 psi (10.3 bars) pressure relief valve • 2” (5 mm) casters • 3/4” cooling water connections • Manually-operated 3-way valve for changeover to negative pressure mode • Centrifugal pump • 1-year warranty on parts and labor at factory • 5-year warranty on controller • Lifetime warranty on pump housing, impeller, heater tube, piping • 460/3/60 or 230/3/60 standard operating voltage • 9 kW heater
