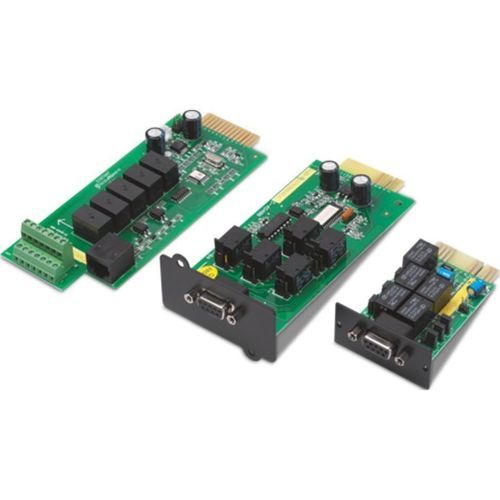

Switching relay module

electromechanicalprogrammablePCB

Product overview
The relay cards are an option for UPS series with an expansion slot. They provide potential-free contacts at the outputs, configurable as N/O (normally open) or N/C (normally closed), and can be used as binary inputs for PLCs (SPS) or building control systems. Tapping occurs via a sub-D slot and, for the programmable PRO design, via a clamping block designed for supply voltage potential.

Primary function

• Communication through potential-free contacts for monitoring and control of UPS outputs.

Options

• Relay Card Standard — For Protect C / D / 1 series — Order no: 600 000 3932
• Relay Card Pro — For Protect C / D / 1 series — Order No: 600 000 9253
• Relay Board CON_R_AUX — Order no: 800 006 2610

Notes

• Contacts configurable as N/O or N/C.
• Used as binary inputs for PLCs or building management systems.
• Tapping via sub-D slot; PRO variant supports tapping via a clamping block for supply voltage potential.

Technical specifications

• Option for UPS series with expansion slot.
• Potential-free output contacts (configurable N/O or N/C).
• Binary input capability for PLCs (SPS) and building control systems.
• Tapping interface: sub-D slot (standard).
• PRO design tapping interface: clamping block for supply voltage potential.
• Available variants: Standard, Pro, CON_R_AUX relay board (see order numbers above).
