Atmospheric burner

natural gasindirectly firedbar

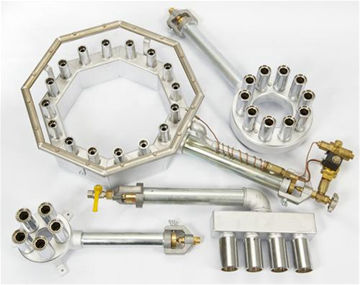

Flame nozzle bar burners. The 'labo' bar burners are atmospheric burners with the flame nozzle welded on main distributor tubs for a straight flame line until 2 meters. Those burners exist in specific length. Gas rating between 40 to 70kW (132,000 to 235,000 btu) by meter. CHARACTERISTICS all flame positions, Natural gas and propane between 300mbar to 2.5 bar. Iron steel or stainless steel material. Supplied with ignition bar burner. Options : Flame failure system by thermocouple valve for any gas rating under 120 kW (410,000Btu). Flame control with automatic ignition and flame failure surveillance by ionisation mainly or UV probe for all gas rating. Automatism and controls. Support frame. APPLICATIONS Manufacturing tool preheating. before welding preheating. Flaming, burning and precooking in food industry. Binding operations.
