Digital multimeter 5212portable600 Vcat III
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 600 V
- Safety rating
- cat III
- Additional features
- frequency, with data logger
- Protection level
- rugged, IP54, EMC
- Other characteristics
- AC/DC, AC, DC
- Max DC voltage
600 V
- Max AC voltage
600 V
- Max DC current
10 A
- Max AC current
10 A
- Max resistance measure
4 mOhm
- Max capacity measure
100 mF
- DC voltage precision
0.5 %
- AC voltage precision
0.5 %
- DC current precision
0.5 %
- AC current precision
0.5 %
- Process temperature
Min.: -20 °C
(-4 °F)Max.: 49 °C
(120 °F)- Length
170 mm
(6.69 in)- Width
80 mm
(3.15 in)- Height
50 mm
(1.97 in)- Weight
320 g
(11.29 oz)
Description

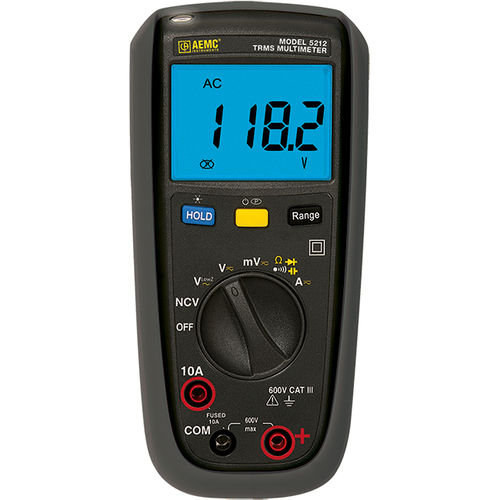

The Model 5212 is a portable hand-held multimeter which measures a variety of electrical and physical quantities including voltage (AC and DC), resistance, capacitance, and frequency. These instruments can also perform continuity checks, voltage detection and diode testing (including forward bias voltage). Measurement features include Auto Range mode, which enables the instrument to select the best range for the input detected, and a Data HOLD function. This instrument is rugged and simple to use and rated to 600V CAT III.
