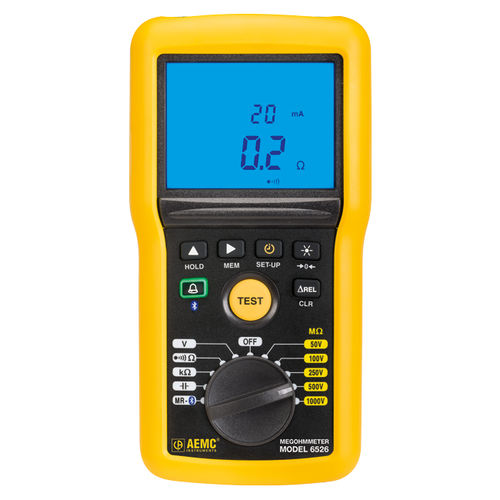

Digital megohmmeter 6526

portable

• True Megohmmeter® • 1 kV Insulation and Multi-Function Tester (Resistance, Capacitance, Continuity, Frequency and Voltage) • 50V, 100V, 250V, 500V and 1000V Insulation Test Voltages • 200GΩ Max Insulation Resistance • DAR and PI ratios calculated • Timed Test Mode up to 40 minutes for Insulation Resistance Test • Test Lock feature for hands free timed measurements up to 15 minutes • Continuity tests at 20mA or 200mA • Test lead resistance compensation for accurate low resistance measurements • True RMS AC/DC Voltmeter up to 700V • Ohmmeter to 1000kΩ • Capacitance to 10µf • Frequency measurements from 15 to 800Hz • Auto discharge after Insulation Test • Hold function to "freeze" readings • Large and bright dual display with blue backlight • Pass/Fail indicator with green/red backlight • Auto Standby Feature due to inactivity saves battery power • 1300 Measurement storage in memory • Bluetooth communication with included DataView software • Complies with International Insulation Testing Standards including IEC/EN 61557 • 600V CAT IV • Optional Remote Probe accessory
