Basic sound level meter CA832

integratingclass 2digital

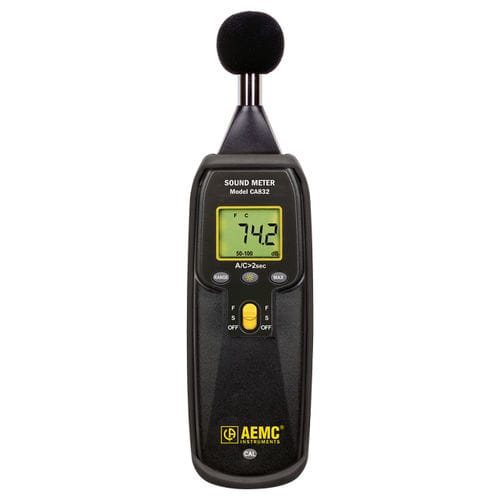

The Sound Level Meter Model CA832 is designed to assess sound ambiences or nuisances in accordance with international safety and quality standards. It complies with standard IEC 651. The Model CA832 is a portable, compact instrument with a 2000-count backlit LCD. It is designed for simple, one-hand operation and may be fitted on a tripod for long duration measurements. It features two weighting curves A and C for measurement integrating the sensitivity of the human ear according to sound frequency. Curve A is the general-purpose curve in an industrial environment, and C is more suited in presence of low frequency sounds. Also, mode "F" (fast response time) corresponds to the response time of the ear. Mode "S" (slow response time) will be used to obtain a uniform reading when the sound signal level shows fluctuations. Specifications Measurement Range - Lo : 37 to 80dB Med: 50 to 100dB Hi: 80 to 130dB Accuracy - ±1.5dB (ref. 94dB @ 1 kHz) Resolution - 0.1dB Precision - ±2.0dB Measurement Rate - 2.5 times per second Dynamic Range - 50dB Frequency Range - 31.5 to 8000Hz Frequency Weighting - Curves A and C Time Weighting - Slow (S) and Fast (F) Microphone - Electret condenser microphone Auxiliary Output - AC: 1.0Vrms (600Ω impedance) DC: 10mV/dB (50Ω impedance) MAX Function - Yes Display - 3½ digit backlit LCD, 2000-count Power Source - 1 x 9V alkaline battery (included) Low Battery Indication - Yes Dimensions - 9.33 x 2.36 x 1.5” (237 x 60 x 38mm) Weight - Approximately 8.11oz (230g) including battery Operation Temperature - 32 to 122°F (0° to 50°C) Storage Temperature - -4 to 140°F (-20° to 60°C)
