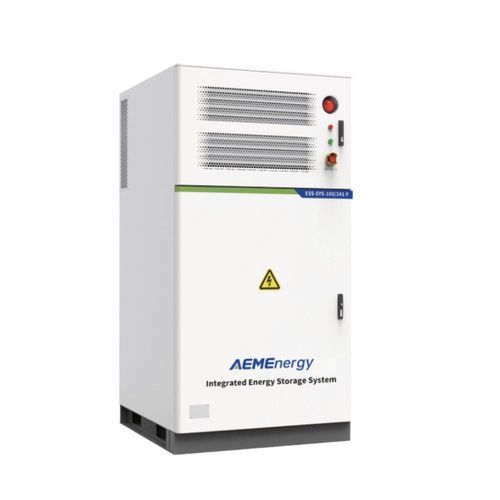

Lithium iron phosphate energy storage system UniPower C&I All-in-One BESS

LFPcompactair-cooled

Product Overview
AEME's C&I air-cooled Battery Energy Storage System (BESS), models ESS-SYS-68/241-Y and ESS-SYS-100/241-Y, is an integrated solution for commercial and industrial energy storage. The system uses Lithium Iron Phosphate (LFP) cells and combines BMS, PCS, EMS and cloud-based management. It incorporates multi-layer fire detection and suppression, remote shutdown and emergency stop linkage, intelligent air cooling and engineered noise control. The modular enclosure supports side-by-side and back-to-back installation for space-efficient deployment, suitable for on-site C&I applications.

Applications
Commercial buildings and retail stores
Industrial facilities and factories
Data centers and critical power support
Renewable integration and microgrids
Peak shaving, load shifting and backup power

Key features

• Compact footprint: Designed for space-efficient deployment with side-by-side or back-to-back layouts.
• High efficiency: With a maximum system efficiency of over 88%, the solution features rigorous thermal insulation and a highly efficient PCS for greater overall performance
• Enhanced safety: Enhanced protection through BMS and PCS monitoring, emergency stop, remote shutdown, active fire suppression, water-based firefighting, and explosion-proof design.
• Digital management: The integrated BMS, PCS, and EMS, combined with cloud-based supervision, enable end-to-end digital management throughout the system’s life cycle.
• Low noise: Ultra-quiet PCS with built-in noise reduction.

Specifications
Product Model: ESS-SYS-68/241-Y; ESS-SYS-100/241-Y
Battery Type: Lithium Iron Phosphate (LFP)
Cycle Life: ≥6000 cycles (95% DOD charge/discharge, 25±2℃, EOL 80%)
Depth of Discharge: 0.95 DOD
Rated Energy (kWh): 241.15 kWh (0.5P, 25±2℃)
Nominal Voltage (V): 768 V
Voltage Range (V): 672–864 V
Cell Type: LFP 3.2 V / 314 Ah
Battery Configuration: 1P24S × 10
Protection Level: IP55
Operating Temperature (℃): -20~55
Operating Humidity: ≤95% (non-condensing)
Operating Altitude (m): 4000 (derated above 2000 m)
Fire Protection System: Composite detection + gas extinguishing + water-based fire suppression
Early Detection: Four-in-one detector (smoke, temperature, CO, VOC)
Thermal Management System: Industrial-grade AC, intelligent air cooling
Gas Extinguishing Medium: Aerosol
