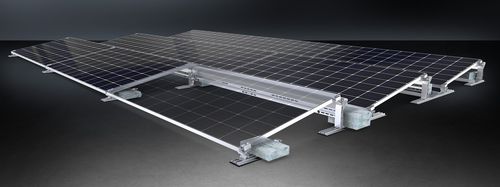

Flat roof PV mounting system SN 2 series

VERSATILE. INNOVATIVE. ECONOMIC. The flexible, rail-based modular system offers a solution for all conceivable flat roof applications and enables short-side and long-side clamping. With few components we have created a large number of possibilities. With the COMPACTFLAT SN 2 we have developed a reliable as well as flexible PV mounting system, which not only defies heavy snowfall and wind, but also offers a quick and simple construction method, saving costs during installation. The reduced product design of the COMPACTFLAT SN 2 convinces with its high load-bearing capacity and resistance to extreme weather conditions. The cost-optimized mounting system can be quickly and easily installed on flat roofs in just a few steps and now allows PV module sizes of up to 2,384 x 1,303 mm. Thanks to individual, pre-assembled components of the enhanced mounting system, only one installer is required for mounting. This effectively saves time and costs during installation. Module sizes up to 2,384 x 1,303 mm Low point loads Short and long side clamping Suitable for high wind and snow loads Flexible system with few components Pre-assembled components, plug & play
