Mono-pitched roof PV mounting system TL series

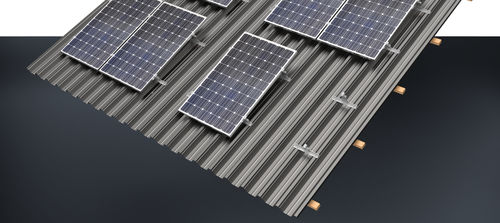

SIMPLE. STABLE. PROVEN. COMPACTMETAL TL stands for simple and versatile PV mounting on trapezoidal sheet metal roofs. The trapezoidal bridges in 250 mm or 380 mm length are screwed without cutting and without pre-drilling over two high beads of the trapezoidal sheet. The Click module clamps are mounted directly onto the trapezoidal sheet metal bridge. PV installation on commercial and industrial roofs requires mounting systems that offer great flexibility and stability with low material and labor costs. At the same time, interventions in the existing roof should be minimized so that the roof functions are preserved in the best possible way. On steel and aluminum trapezoidal sheets Minimal material and installation effort Adapters for better rear ventilation Variable due to modular construction system For high wind and snow loads Suitable for all framed PV modules Adapter for elevation Few components, minimum logistics effort
