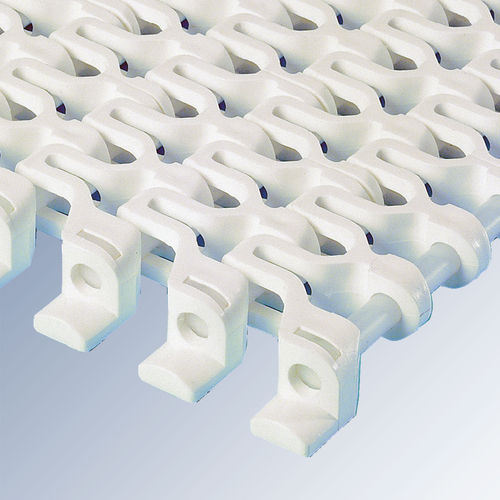

Modular conveyor belt E93 FG series

flush gridpolypropyleneindustrial

Pitch = 30 mm Open area = 47% Thickness = 19 mm Turning radius = 2.2 times the belt width Rod diameter = Ø 8 mm Eurobelt Series E93 Flush Grid with edge tab has been designed to enable all kind of turns whose minimum radius is 2.2 times the belt width. Their tabs are lateral ends located in the lower edge of the belt and are used to fasten it without interfering in the transport area, so that the product can exceed the belt width in the turns. The rounded shape of the tabs reduces the points of friction with the hold-down profiles, which contributes to increase the life of the belt.
