Oil separator MS series
watercentrifugalcompact

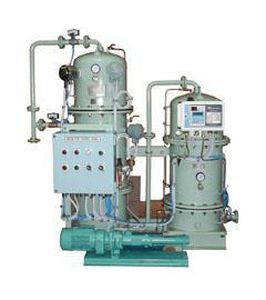

Oil separator - MS series - Aflex Ships Equipment - water / centrifugal / compact
Oil separator - MS series - Aflex Ships Equipment - water / centrifugal / compact
Oil separator - MS series - Aflex Ships Equipment - water / centrifugal / compact - image - 2
Oil separator - MS series - Aflex Ships Equipment - water / centrifugal / compact - image - 3
Add to favorites
Compare this product

Characteristics

Separated substance
oil, water
Technology
centrifugal
Other characteristics
compact
Flow

Min.: 0.2 m³/h
(7.063 ft³/h)

Max.: 5 m³/h
(176.573 ft³/h)

Length

Min.: 660 mm
(26 in)

Max.: 2,400 mm
(94 in)

Width

Min.: 400 mm
(16 in)

Max.: 900 mm
(35 in)

Description

The oily water separator is supplied as a compact modular system, with internal piping and wiring. It is ready to use by connecting the suction and discharge lines as well as the central power supply. The oily water separator conforms to IMO Resolution MEPC 107(49) and comes with 15 ppm bilge alarm. Specifications » Measurement range: 0~30ppm » Measurement precision: 15ppm+/-5ppm (IMO Standard) » Instant alarm relay » Power: AC 110/220V » Output: 4~20mA » IMO Resolution MEPC 107(49) Approved
