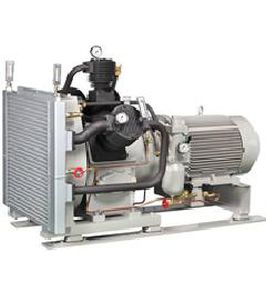

Piston compressor B series
airelectricstationary

Piston compressor - B series - Aflex Ships Equipment - air / electric / stationary

Piston compressor - B series - Aflex Ships Equipment - air / electric / stationary - image - 2

Add to favorites

Compare this product

Characteristics

Technology

piston

Type

air

Power source

electric

Portability

stationary

Application domain

for marine applications

Other characteristics

low-noise, high-performance, air-cooled, water-cooled, light, two-stage, three-stage

Pressure

Max.: 40 bar
(580.15 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 465 m³/h
(16,421.32 ft³/h)

Min.: 22 m³/h
(776.92 ft³/h)

Power

Max.: 89.5 kW
(121.69 hp)

Min.: 4.9 kW
(6.66 hp)

Length

Max.: 1,812 mm
(71.34 in)

Min.: 800 mm
(31.5 in)

Width

Max.: 1,185 mm
(46.65 in)

Min.: 560 mm
(22.05 in)

Height

Max.: 1,135 mm
(44.69 in)

Min.: 600 mm
(23.62 in)

Description

The marine air compressor are available in air-cooled and water-cooled versions. The marine air compressor is noted for its durability, high performance, space saving, low vibration, low noise level, light weight, high volumetric and low installation cost. The system is manufactured and tested under full load in accordance with the valid standards to offer economical, can apply to air and neutral gases up to pressure of 350 bar.
