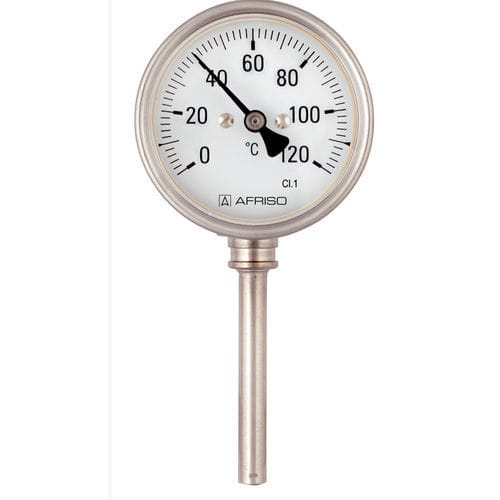

Bi-metal thermometer BiTh Ch
dialIP65for chemical products

Bi-metal thermometer - BiTh Ch - AFRISO-EURO-INDEX - dial / IP65 / for chemical products
Bi-metal thermometer - BiTh Ch - AFRISO-EURO-INDEX - dial / IP65 / for chemical products
Bi-metal thermometer - BiTh Ch - AFRISO-EURO-INDEX - dial / IP65 / for chemical products - image - 2
Bi-metal thermometer - BiTh Ch - AFRISO-EURO-INDEX - dial / IP65 / for chemical products - image - 3
Add to favorites
Compare this product

Characteristics

Technology
bi-metal
Display
dial
Protection level
IP65
Applications
for chemical products, for food
Other characteristics
stainless steel, hygienic, DIN rail
Temperature

Min.: -20 °C
(-4 °F)

Max.: 160 °C
(320 °F)

Precision

1 %

Dial diameter

63 mm, 100 mm, 160 mm
(2.5 in, 3.9 in, 6.3 in)

Description

Ideal for hygienic processes Process connection centre back or bottom or threads various thermowells Application For corrosive media. Meets high measuring demands, e.g. in process engineering as well as chemical and food industry applications. Standard design Connection Stem: Stainless steel 316 Ti, ∅ 8 mm, plain Mounting position Bottom or centre back Dial Aluminium, white Scaling black Pointer Aluminium, black Housing Stainless steel 304 Bayonet type bezel Stainless steel 304 Window Instrument glass Options Thermowell G½B, stainless steel 316 Ti/316 L Grooved nut connection as per DIN 11851 Other connection designs Other ranges Other stem lengths Laminated safety glass window Glycerine filling Every angle version Back flange 3-hole fixing, panel mounting bezel Special materials
