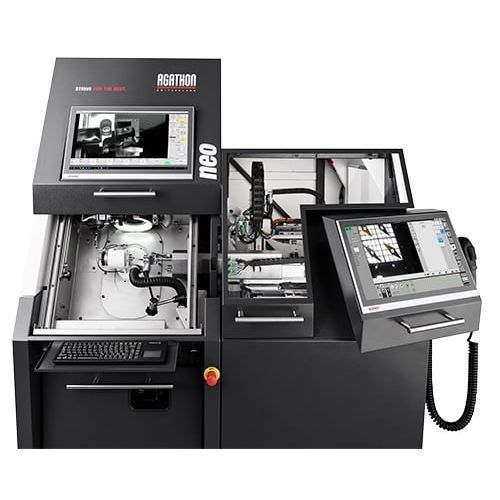

3D laser processing machine Neo

Tungsten carbide workpieces, in particular indexable inserts with superhard tips (PCD, pCBN etc.) are lasered near to the final dimension and finally processed on the grinding machine. Compared to grinding, the Neo laser has an approximately 100 times higher removal rate when processing superhard materials. Advantages of the Neo concept Ideal combination of tremendous machining speed and perfect surface quality The combined process of laser processing and grinding is faster than other established processes Considerably reduced costs for consumables when grinding the superhard material tips Reasonable investment costs for laser processing The Neo is extremely compact with a footprint of about 1 m2 (with automation unit around 2 m2) Neo - the complete machine Laser Roughing machine for superhard materials (pCBN, PCD) Processing the periphery, clearance angles, chip breakers and laser marking on indexable inserts Greater efficiency due to automatic loading. Also available without automation unit. Compact and open design for best accessibility and ergonomic comfort The Neo can be set up and operated from different angles using the hand-held panel. Three mechanical axes and three optical axes Options Clamping system HSK E25 (manual loading) Highly productive and matched to one another The machine concept ensures efficient laser processing and can be combined with tried and tested automation Significantly faster processing of carbide inserts with superhard tips (pCBN, PKD) Reduction of the effective processing time up to 40% Handling, handling tools, attachments and HMI are industrial Agathon standard
