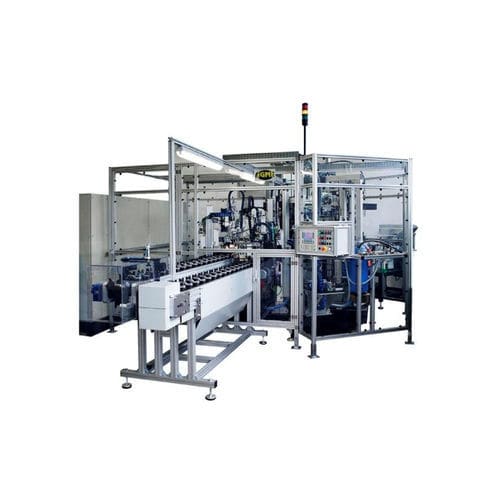

Automatic assembly machine

for ball jointspalletlinear

Greasing and assembly of ball joints Capability for several model types Technologies Rotary transfer with 10 workstations Palletized system to feed and position parts Design and manufacturing of special fixtures Automatic feeding of components from pallet to the rotary transfer Studs straightening by a double fork system with angle control Torque control Automatic feeding of the guiding cone on the stud Greasing of components by dosing system Components automatic feeding and assembly by manipulators, linear transporters, selection devices and pincers Seal control with a leak tester Components position control Automatic loading of OK parts on pallets by a manipulator Advantages Integration in one single machine of all ball joints assembly, greasing and control processes Complete automation of all processes except for the subassemblies manual feeding on the pallets Optimization of the assembly processes, resulting in cycle time reduction and productivity increase
