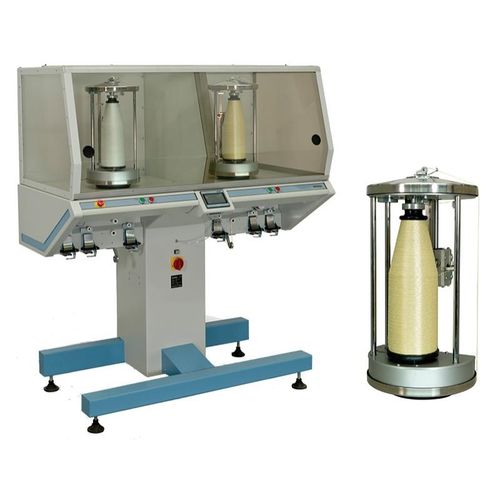

Automatic twisting machine DirecTwist ® 2D10"

yarn

AGTEKS Signature in Tech-Textile The milestone machine of technical textile industry. It has proven itself with its innovative designs and achievements. It has been designed for produce the best quality twisted or covered technical yarns. Twisting speed - 750 to 10.000 twist / minute, independent each spindle Twisting range - 3 to 1.000 twist / meter, independent each spindle Take-up speed - Up to 200 meters / minute, independent each spindle Total twisted yarn thickness - 100 Nm to 0.9 Nm (~90 denier to ~10,000 denier) Take-up cone size - 345 mm length, single flanged tube Maximum take up cone diameter - 160 mm Elastane Yarn Feeding Attachment Optional programmable precise elastane feeding device allows 10% to 90% feeding rate in most twist range. Possibility of twisting elastane with any kind of fibers. Servo Bobbin Feeder Technical and twisted yarns feeding process should be applied with constant tension. Servo Bobbin Feeder allows up to 200 meter/min speed. The bobbin holder allows almost any kind of spools. Any number of unit may be connected to any spindle. The tension on the yarn is adjustable. Attached sensors can stop the machine in case of yarn breakage. Creel Unit Creel Unit allows to control many yarns during the operation with mechanical yarn break sensors. In case of yarn break it stops the machine The tension on the yarn is adjustable with weight-disc tensioners.
