Conical screw feeder
automaticcompact

conical screw feeder
conical screw feeder
conical screw feeder
Add to favorites
Compare this product


Characteristics

Type
conical screw
Operating mode
automatic
Other characteristics
compact

Description

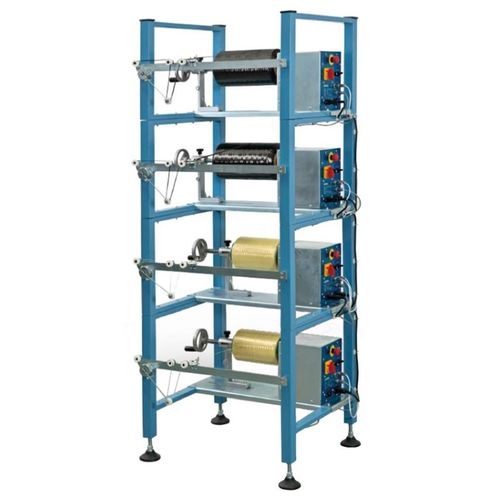

Up to 200 Mt/min Technical and twisted yarns feeding process should be applied with constant tension. Servo Bobbin Feeder allows up to 200 meter / min. speed. The bobbin holder allows almost any kind of spools. Any number of unit may be connected to any spindle. The tension on the yarn is adjustable. Attached sensors can stop the machine in case of yarn breakage. Number of feeding unit - 1 to 4 in Same Frame Power - 200-240V, 1P , 50-60Hz, 0.15 kW Feeding speed - Up to 200 Meter / Minute, depend on synchronized machine and the bobbin weight Feeding torque - 2.0 Nm Feeding bobbin weight - Up to 6 kg (13 lbs) Bobbin size - Up to 95 mm inner, 310 mm outer diameter, 290 mm length
