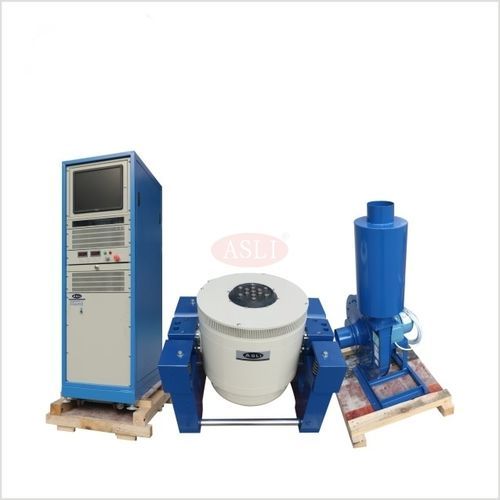

Vibration test bench ES series

shockmanualprinted circuit

Overview
A PCB vibration test bench is designed to simulate the vibrations that a printed circuit board (PCB) might experience during operation and transportation. The bench typically consists of a base plate or expander (horizontal or vertical), a vibration generator (electrodynamic shaker), a power amplifier, a closed-loop vibration controller, and fixtures/interface plates to mount PCBs of various sizes. Vibration can be applied in vertical, horizontal and rotational directions with controlled amplitude and frequency to reproduce real-world environments and reveal resonance points, weak solder joints or component failures.

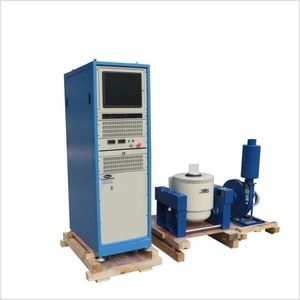

System Composition

• Electrodynamic Shaker (air-cooled, lightweight armature)
• Power Amplifier (switching-type, high efficiency)
• Vibration Controller (DSP closed-loop with sine, random, shock and RSTD modes)
• Head Expander & Fixtures (custom or standard interface plates to match PCB footprints)
• Cooling System (low-noise blower for continuous operation)

Electrodynamic Shaker — Main Parameters
Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (kg) | Moving Coil (kg) | Dimension of Moving Coil (mm)
ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150
ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230
ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230
ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230
ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240
ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320
ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450
ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450
ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450
ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450
ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450

Horizontal Expander — LT Series
Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg)
LT0303 | 300×300×22 | 5-1000 | 6.6
LT0303 | 300×300×26 | 5-1500 | 7.8
LT0303 | 300×300×30 | 5-2000 | 9.0
LT0404 | 400×400×22 | 5-1000 | 11.2
LT0404 | 400×400×26 | 5-1400 | 13.2
LT0404 | 400×400×30 | 5-2000 | 16.0
LT0505 | 500×500×25 | 5-1000 | 19.3
LT0505 | 500×500×30 | 5-1500 | 23.1
LT0505 | 500×500×35 | 5-2000 | 27.0
LT0606 | 600×600×25 | 5-1000 | 27.5
LT0606 | 600×600×30 | 5-1200 | 33.0
LT0606 | 600×600×40 | 5-2000 | 45.0
LT0707 | 700×700×25 | 5-800 | 36.8
LT0707 | 700×700×30 | 5-1000 | 44.2
LT0707 | 700×700×35 | 5-1500 | 52.0

Vertical Expander — VT Series
Model | Weight (kg) | Max. Frequency (Hz) | Bench Size
VT300 | 10 | 2000 | Φ300
VT400 | 16 | 2000 | Φ400
VT500 | 25 | 1500 | Φ500
VT600 | 35 | 1000 | Φ600
VT0303 | 15 | 2000 | 300×300
VT0404 | 22 | 1500 | 400×400
VT0505 | 30 | 500 | 500×500
VT0606 | 58 | 350 | 600×600
VT0808 | 140 | 350 | 800×800
VT1010 | 180 | 350 | 1000×1000
VT1212 | 250 | 350 | 1200×1200
VT1212 (Round) | 220 | 350 | Φ1200

Features & Test Capabilities

• Precision sine and random testing up to 3,500 Hz to detect resonance and assembly weaknesses.
• Closed-loop DSP controller with RSTD mode for repeatable, standard-compliant waveforms.
• Custom fixtures/interface plates for various PCB footprints from small SMT modules to large backplanes.
• Pre-mapped profiles for common vibration standards including IEC 60068 family and MIL-STD-810G Method 514.

Deliverables (examples of documents and services included with system)

• Factory Acceptance Test (FAT) report with specimen profile
• Export packing list and installation guide
• Lifetime remote technical support access

Applications & What You Can Test

• PCB assemblies (rigid and flex-rigid)
• SMT components and BGA solder joints
• Multilayer PCBs, connectors & headers
• Electronic control units and large backplanes

Technical specifications

• Maximum shaker frequency range: up to 3–3500 Hz depending on model
• Rated sine/random force: from 3,000 N to 100,000 N across ES series models
• Rated acceleration: up to 1000 m/s² for many models
• Rated speed: up to 1.8 m/s
• Rated displacement (p-p): up to 51 mm for larger models
• Max. loading capacity: from 100 kg up to 1,000 kg depending on model
• Horizontal expanders (LT series) bench sizes from 300×300 mm to 700×700 mm with frequency ranges to 2000 Hz
• Vertical expanders (VT series) available as round or square tables up to 1200×1200 mm
• System includes shaker, amplifier, controller, expanders/fixtures and cooling system
