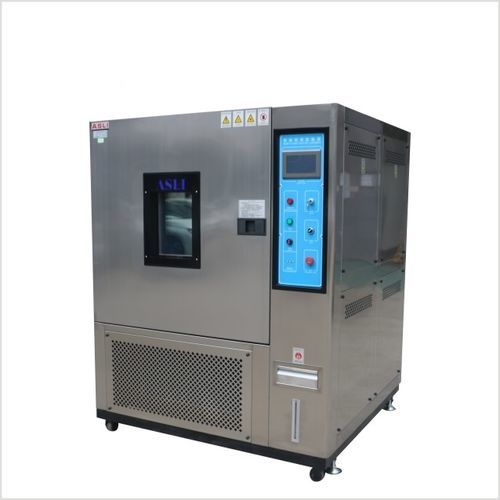

Thermostatic test chamber

climatictemperaturehumidity

Overview
High and low temperature testing chamber for temperature and humidity tests, thermal cycling, cold resistance, ultra-low and high-temperature trials, storage-condition simulation and calibration. Offered in standard and customizable sizes including benchtop, floor-standing and walk-in units.

Key design features

• One full-size side-open door enabling vertical loading of tall specimens and easy access to internal fittings
• Flexible, adjustable shelving with optional additional layered shelves
• Available in benchtop, floor and walk-in formats to suit laboratory and production environments

Available chamber types and volumes

• Bench-top, floor-standing and walk-in models
• Standard interior volumes: 80 L; 150 L; 225 L; 408 L; 800 L; 1000 L; custom larger sizes on request

Temperature performance

• Minimum temperatures: configurable to -80°C, -70°C, -60°C, -40°C
• Maximum temperatures: 0°C; ambient; +80°C; +100°C; +150°C; +180°C; +200°C

Description details
Chambers are configurable to meet specific test protocols and may include internal layout drawings and shelving options. Suitable for reliability testing, material characterisation and thermal stress evaluation in R&D and production settings.

Technical specifications

• Applications: temperature and humidity testing, thermal cycling, cold resistance, ultra-low temperature testing, high-temperature testing, storage simulation, calibration
• Chamber formats: benchtop, floor-standing, walk-in
• Volume range: 80 L to 1000 L and custom designs
• Temperature range options: min down to -80°C; max up to +200°C depending on configuration
• Door design: full-size side-open door for vertical loading
• Shelving: adjustable heights; additional shelves available
• Use cases: reliability, material testing, thermal stress and environmental simulation
