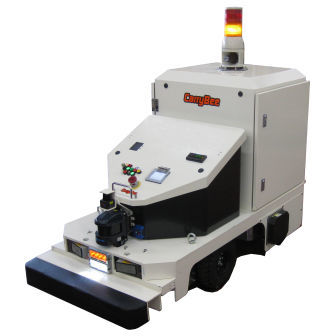

Handling AGV

for loadingfor unloadingelectric

Best for the transportation between buildings Outdoor AGV that can turn around in a small area. Same usability as conventional AGV. Wide range of running zones among buildings to in a plant. Transportable Weight - ～3000kg Drive Method - 4WD Driving Speed - App. 40, 80, 120m/min (Min. speed: 4m/min) Guidance Method - Magnetic Running Direction - Forward, Short Reversing Minimum turning radius - R700mm Hill Climbing Ability - 5 degrees (Towing weight: 2500kg) Stopping accuracy (AGV alone) - ±10mm Length×Width×Height - 1545×732×1445 (mm) Performance / Function - Running function ・Setting speed : 10 speeds Destination control function ・200 programs / 200 steps Safety function 　・Anti-collision (Obstacle sensor)、Bumper switch、Signal Lamp、Melody unit Battery - 48V (150Ah×4)
