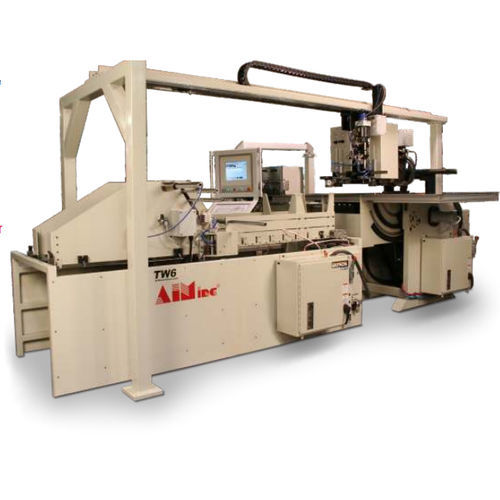

Resistance welding machine T-Welder TWx

high-frequencypulseautomatic

Each AccuForm T-Welder Series machine currently has 2 fully programmable motion axes. These machines have a frame hopper and for the cross wires, they take wire directly from coil, straighten it, and cut it to manufacture T-Welded frames (also called cross wire welded frames) used for filter, refrigerator, shelving, store fixture, display, oven or grill frames to name a few. These products can be designed with the use of AIM’s exclusive software package. SmartEditor® which provides flexibility and simplicity in setup. Programming is quick and easy. All you need is to enter the cross wire length and the location(s) of the T-welds and begin production! AIM uses the world’s preeminent servo system. The smallest wire feeder resolution is 45 encoder pulses per millimeter and the resolution of the carriage is 225 encoder pulses per mm. The published servo controller accuracy is ±1 pulse, and the length accuracy is ±0.25 millimeters (±0.0095″). This accuracy supplied allows wire and tooling tolerance calculation and points out the wire inconsistency effect. The better the wire supplied, the better the output product will be. Accuracy and repeatability of AIM machines are exceptional. Parabolic and S-curve positioning profiles give smoother acceleration and deceleration minimizing shape distortion while achieving higher speeds at minimum possible power usage. The standard models grant to the AIM equipment the title of the highest working speeds in the market.
