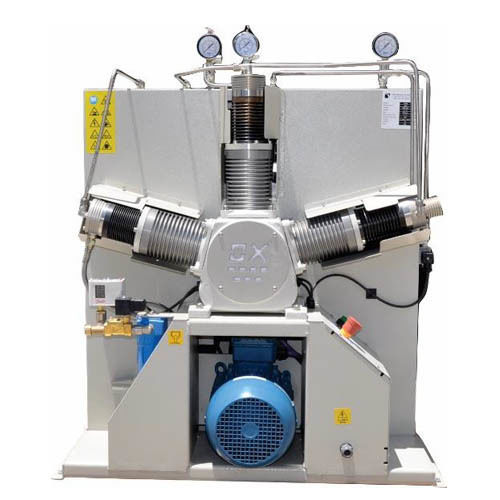

Piston mini booster OX series

oxygencompressed airoil-free

Overview
High-pressure OX series boosters for cylinder filling at final pressures from 150 to 200 bar. Suitable for small to high daily throughput (approx. 4 to 140 cylinders/day) and continuous industrial operation.

Models
OX25

• Small booster: 0.5 m3/h to 2.1 m3/h
• 100% oil-free high-pressure booster
• Final pressure: 150 bar
• Low RPM operation
• Heavy-duty design for continuous operation
• Two-stage

OX50

• Small booster: 1.2 m3/h to 2.8 m3/h
• 100% oil-free high-pressure booster
• Final pressure: 150 bar
• Low RPM operation
• Heavy-duty design for continuous operation
• Two-stage

OX100 / OX100PLUS

• Small booster: 1.5 m3/h to 4.8 m3/h
• 100% oil-free high-pressure booster
• Final pressure: 150 bar (OX100) / 200 bar (OX100PLUS)
• Low RPM operation
• Heavy-duty design for continuous operation
• Two-stage

OX200 / OX200PLUS

• Medium booster: 1.5 m3/h to 7.5 m3/h
• 100% oil-free high-pressure booster
• Final pressure: 150 bar (OX200) / 200 bar (OX200PLUS)
• Low RPM operation
• Heavy-duty design for continuous operation
• Two-stage

OX300

• Medium booster: 8.4 m3/h to 14 m3/h
• 100% oil-free high-pressure booster
• Final pressure: 150 bar
• Low RPM operation
• Heavy-duty design for continuous operation
• Three-stage

OX300PLUS

• Medium booster: 7.5 m3/h to 13.5 m3/h
• 100% oil-free high-pressure booster
• Final pressure: 200 bar
• Low RPM operation
• Heavy-duty design for continuous operation
• Three-stage

OX500

• High booster: 12 m3/h to 20.5 m3/h
• 100% oil-less high-pressure booster
• Final pressure: 150 bar
• Low RPM operation
• Heavy-duty design for continuous operation
• Three-stage

OX1000

• High booster: 20 m3/h to 44 m3/h
• 100% oil-less high-pressure booster
• Final pressure: 150 bar
• Low RPM operation
• Heavy-duty design for continuous operation
• Four-stage

OX1000PLUS

• High booster: 20 m3/h to 36 m3/h
• 100% oil-less high-pressure booster
• Final pressure: 200 bar
• Low RPM operation
• Heavy-duty design for continuous operation
• Four-stage

Technical specifications

• Operating pressure range: 150 bar to 200 bar (model dependent)
• Capacity ranges by model: OX25 0.5–2.1 m3/h; OX50 1.2–2.8 m3/h; OX100 1.5–4.8 m3/h; OX200 1.5–7.5 m3/h; OX300 8.4–14 m3/h; OX300PLUS 7.5–13.5 m3/h; OX500 12–20.5 m3/h; OX1000 20–44 m3/h; OX1000PLUS 20–36 m3/h
• Design: heavy-duty for continuous industrial operation
• Lubrication: oil-free / oil-less designs depending on model
• Speed: low RPM operation to extend component life
• Stages: 2-stage (OX25–OX200), 3-stage (OX300, OX300PLUS, OX500), 4-stage (OX1000, OX1000PLUS)
