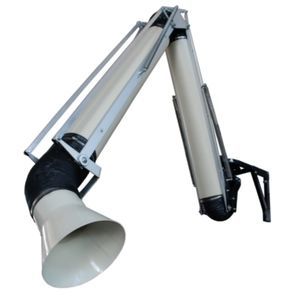

Ceiling-mounted extraction arm EP series

wall-mountedflexiblerigid

Self-supporting structure with 4 pantographs (patented) with guaranteed handling, reliability and robustness. No component immersed in the suction flow for a reduction in the pressure drops. Perfect for general industrial applications such as: welding fumes extraction, extraction of fumes, dust and vapours with Max T. to 90°C Balanced through counteracting springs also on the front arm section (Forearm) Availability of special versions and variants that can adapt to any need and industrial application Availability of special hoods for each type of application and pollutant Ability to assembly with Jib extensions (for an overall extension up to 8 mt), extraction ducts, wall bracket or ceiling (for a rotation of up to 360°) Available in both the hanging and standing version Available in the INDUSTRY and LABORATORY model The top-range safety Thanks to its quad pantograph support structure, the construction details and the used materials that have included it in the Top Range, the industry and laboratory 4-PRO extraction arm is recommended for intensive use, prolonged aspirations or for those who want a solid, strong, durable and highly reliable extraction arm. The external support structure and the rigid pipe make this arm perfect for those who need to minimize the pressure drops. The INDUSTRY model is available and with a length of 2, 3 and 4 meters; the LABORATORY model extraction arms are available in diameters.
