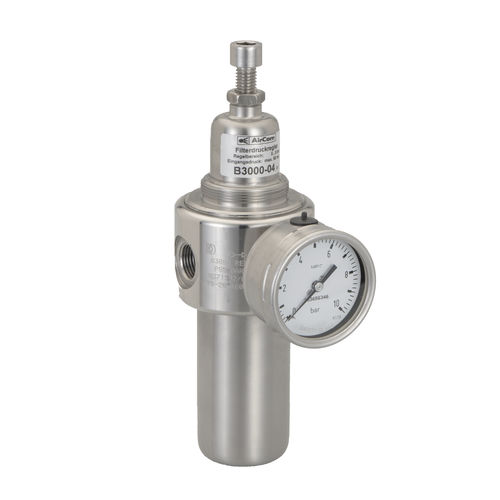

Compressed air filter-regulator B3000 series
airpressurefor the food industry

Compressed air filter-regulator - B3000 series - AirCom Pneumatic - air / pressure / for the food industry

Add to favorites

Compare this product

Characteristics

Designed for

compressed air, air

Filtration method

pressure

Applications

for the food industry

Material

stainless steel

Norms

G1, G3

Operating pressure

50 bar
(725.189 psi)

Filtration size

5 µm, 50 µm

Flow

Max.: 20,000 l/min
(5,283.441 us gal/min)

Min.: 200 l/min
(52.834 us gal/min)

Fluid temperature

Max.: 130 °C
(266 °F)

Min.: -20 °C
(-4 °F)

Description

Filter pressure regulator with bowl without sight glass, completely made of stainless steel. Diaphragm-operated, from size G3/4 on piston-operated. Media: compressed air, gases or liquids Adjustment: - by adjusting screw, - from B3000-12 on with T-handle, max. 50 bar for B3000-02 to -16, optionally 80 bar Relieving_function: relieving, optionally non-relieving Gauge_port: G1/4 on both sides of the body, G1⁄8 for B3000-01/-A2, one screw plug supplied Bowl: stainless steel version without sight glass Body/Bowl/Inner_valve : stainless steel 316L, material-no. 1.4404 O-rings: FKM, optionally EPDM Diaphragm: NBR/Buna-N with PTFE-coating
