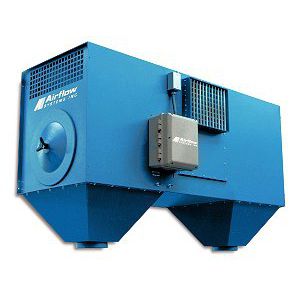

Ceiling-mounted air purifier TC-4

filter

Features & Benefits Class II Direct-Drive Blower: Higher static pressure, longer filter life and greater reliability; spark resistant; no belts or pulleys to replace. Non-electrostatic Operation: High reliability, low maintenance. Four-way Adjustable Airfoil Grille: For precision direction of air back into facility. Maximum Air Flow Design for Light to Medium Applications: Improves operating efficiency. Prewired to Junction Box: For fast, easy installation. Cleanable Filters: Reduces filter replacement costs. Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems. Auto-Clean Off-line Filter Cleaning: Automatically cleans filters when unit is shut off. Dual Hopper Design: Extends matainance cycles. Options Pressure Gauge Kit: Indicates when filters require cleaning. Silencer: Reduces noise by 4 dBA. Cartridge Media: For specific applications. Mounting Brackets: Speeds installation, reduces maintenance expense. Specifications Construction: 16 and 18 ga. steel cabinet, powder coated Blower Pkg (HP): 3.0, 60 Hz; 2.0, 50 Hz Noise Level (dBA): 82 Electrical: 3.0 HP - 208-230/460/575/3/60, 8.6/4.3/3 amps, std.; 2.0 HP - 190/380/3/50, 7.2/3.6 Dimensions Length: 77.00” Height: 45.00” Depth: 28.00”
