Repeater Lighthouse™

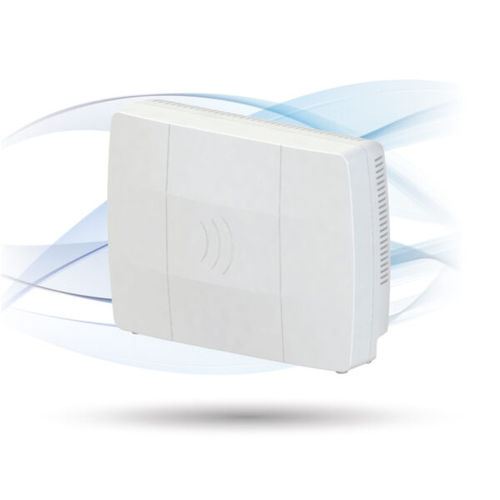

Airgain’s Lighthouse™ Micro Smart Repeater is a 5GNR small office/ home office (SOHO) solution that expands access to high-quality 5G NR networks operating at sub 6GHz frequencies (FDD, TDD FR1). This innovative smart repeater design can improve outdoor to indoor signal quality by offering either a single or multi-band solution. It has optional built-in antennas (Service and Donor) but also accommodates external antennas to achieve the desired coverage. Automated features such as TDD detection, gain control, and echo cancellation bring signal quality stability. Both SISO and 2×2 MIMO versions are available for different applications. With Lighthouse Micro, you can accelerate your 5G experience. Specification System - 5G NR FDD/TDD Frequency Range * - 3700~4000 MHz (TDD n77) 3300~3600 MHz (TDD n78) 2500~2700 MHz (TDD n41) 1920~1980 / 2110~2170 (FDD UL/DL n1) 1710~1785 / 1805~1880 (FDD UL/DL n3) Max. Sub-block Bandwidth - 100 MHz Number of Sub-block - Up to 4 Sub-block Max. Output Power UL/DL - 17/17 dBm ± 2dB Max. Gain UL/DL - 40~60 dB ± 2 dB, 1 dB/step, Manual or Auto Gain Control Support Gain Flatness - <= 3 dBpp within 100 MHz Group Delay - <= 3.0 μs UL/DL EVM - <= 3.5% (at Max. Output Power) UL Noise Figure - <= 6 dB (at Max. Gain) VSWR - = 0 dBm (UL&DL) Out-of-band Gain Rejection - Compliant to 3GPP TS 38.106 Adjacent Channel Leakage Ratio - Compliant to 3GPP TS 38.106 Frequency Stability - Compliant to 3GPP TS 38.106 Spurious Emission - Compliant to 3GPP TS 38.106 Unwanted Emission (Emission Mask) - Compliant to 3GPP TS 38.106
