Cleaning air knife TS06
stainless steelaluminum

cleaning air knife
cleaning air knife
cleaning air knife
Add to favorites
Compare this product


Characteristics

Applications
for cleaning
Material
stainless steel, aluminum
Pressure

Max.: 10 bar (145.04 psi)

Min.: 0 bar (0 psi)

Air consumption

173 m³/h (6,109.44 ft³/h)

Description

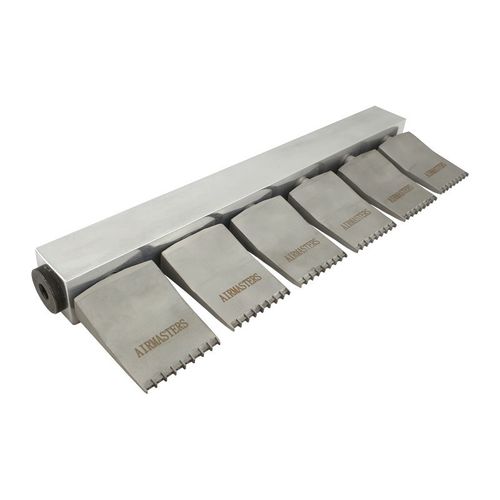

Air Knives Extra available with 2, 3, 4 or 6 nozzles, hard aluminum. The blowing force it is controlled by the thickness of the internal shims, it is enough to take shims out to reduce the blowing force or adjust it. Also air consumption and sound level can be adjusted very easily. Replace drilled pipes reducing dramatically noise level and air consumption. The nozzles can be opened easy for cleaning and maintenance contrary to competition’s nozzles that most of the time get clogged .The shims inside the nozzles are made in stainless steel and provide a high resistance to mechanical wear. Custom made Air Knives Extra are available on request at no additional cost. Blowing force at 5 Bar 32N Blowing pattern Flat Air consumption at 5 Bar 173 Nm³/h Connection type Female Material Aluminum Dimensions 318 mm x 95 mm x 31 mm Sound level at 5 Bar 87dB(A) Sides connection 1/2 " x 2 Back connection 1/2 " x 2 Max operating pressure 10 Bar

Catalogs

No catalogs are available for this product.

See all of AirMasters‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
