Cooling air wipe AIR-AW06

dryingcleaningfor pipes

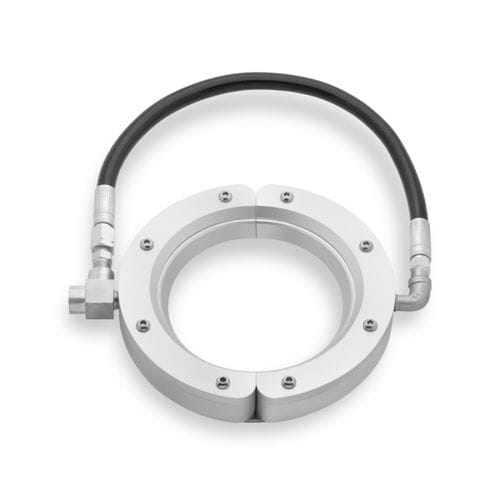

Air Wipe or Ring Blade - Circular Air Knife blow off, clean, cool and dry cables, pipes, extrusions, hoses, wires and ropes. Air Wipe or Ring Blade - Circular Air Knife is easy to mount and maintain and reduces both compressed air consumption and noise levels. Air Wipe or Ring Blade - Circular Air Knife produces a “laminar” flow of air along its 360º angle using the ”Coanda” effect which “entrains” a large volume of air from the surrounding area along with the small amount of compressed air from the Air Wipe or Ring Blade - Circular Air Knife to produce an output flow up to 30 times. System payback on compressed air savings can be as soon as a few weeks in some applications. Air Wipe or Ring Blade - Circular Air Knife is available in aluminium or stainless steel 316L. Blowing pattern Circular External diameter 222 mm Connection type Female Air Amplification 30:1 Dimensions 222 mm x 25.9 mm Sound level at 5 Bar 83dB(A) Internal diameter 153 mm Sides connection 1/4" Shims Stainless Steel
