Air conveyor AIR-CONV03SAN-316L
chipfor plastic pelletsstainless steel

air conveyor
air conveyor
air conveyor
air conveyor
Add to favorites
Compare this product


Characteristics

Technology
air
Transported product
chip, for plastic pellets
Other characteristics
stainless steel, sanitary, vacuum, high-temperature

Description

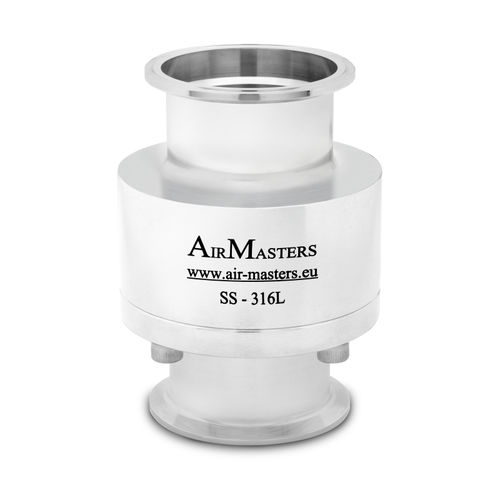

316L Stainless Steel Ring Vac™ with Sanitary Flange 30003S-316L-SAN - Ø out. 1-1/2″ Air Conveyors Ring-Vac™ Pneumatic Conveying Systems with sanitary flange are available in stainless steel and in high temperature stainless steel for high temperature applications. Note: All our stainless steel high temperature Ring-Vac units are rated to 1200ºF (649ºC). Special materials can be utilized for unique applications. If greater conveying force is required the conveying “generator” can be machined for higher capacities. Common applications include hopper loading (resin in the plastic industry, bottle caps in bottling), material conveying of all sorts, waste and trim removal, transferring parts from one location to another, chip removal, tensioning fiber, and in filling operations. Air Conveyors Ring-Vac™ mod. 30003S-316L-SAN - Ø out. 1-1/2″ Connection type Female 3/8" Air consumption at 5.5 Bar 930 l/min Vacuum inches -10 kPa
