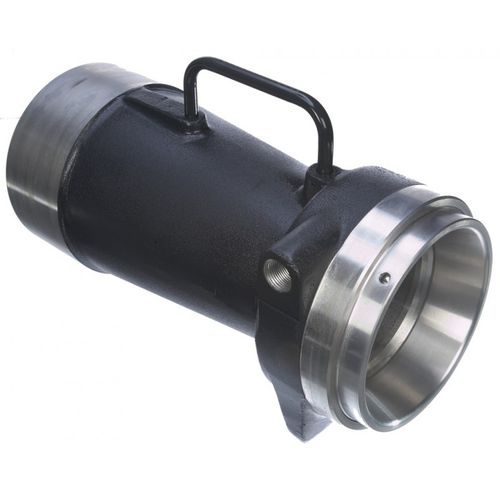

Air amplifier AIRMASTERS125

Air amplifier nozzle or air movers are a simple, inexpensive devices with virtually no maintenance that can convey fumes, smoke, lightweight materials and move a high volume of air for cooling, blowoff and drying applications. Air amplifiers are use the "coanda effect" which entrains a large amount of surrounding air using only a small amount of compressed air. The effect is an amplification of up to 17 times the airflow or more depending on the size of the Air amplifier, with reduced noise levels. Using only compressed air, the output flow and vacuum of the Air amplifiers is easily controlled by adjusting or opening the air gap and/or inlet pressure. Either end of the air amplifier may be ducted to address all kinds of applications from bringing in fresh air into an area. We have 2 versions available: standard Air amplifiers and adjustable Air amplifiers Air amplifier Mod. AIRMASTERS125 Blowing pattern Wide Connection type Female 3/4” Air Amplification 16:1 Material Zinc Internal diameter 125 mm Sound level at 5 Bar 92 dB(A) Shims Stainless Steel Air Velocity at outlet 44 m/s Longer life in difficult environments than competitive models YES Air Flow at outlet 4890 Nm³/h Maintenance free with output easily controlled YES Max operating pressure 7 Bar Applications Blow Off and Vacuum Air consumption at 5.5 Bar 305 Nm³/h Meets the OSHA directives YES BENEFITS : Meet the EU machine directives YES
