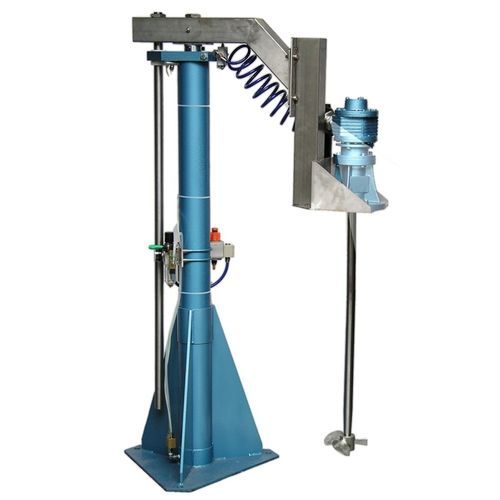

Drum mixing unit 208040-EM14P

Pneumatic mixing station for open drums 20 ÷ 200 lt. The mixing capacity of the equipment is highly efficient with complete and homogeneous movement of the entire liquid flow. Pneumatic controls allow performance and safety in work operations. Equipment 208040-EM14P includes: PM-RS040-V22 pneumatic agitator - Stainless steel Silencer 945028 - Pneumatic lifter 210740 - Equipment 208040-EM16P includes: PM-RS040-V22 pneumatic agitator - Stainless steel Engine silencer 945028 - Pneumatic lifter 210740 - Openable lid for 200 l drums DR600-V2 - Stainless steel Essential characteristics of equipment 208040-EM14/16P: Centralized compressed air connection: - G 1/2” (F) Max motor power (@ 6 bar): - 4 hp Stall Torque: - 5.6Nm Engine supply air: - 2 ÷ 6 bars Pneumatic lift stroke: - 600mm Air consumption at max power: - 1.3 m³/min Dissolving Helix: - cowless 100mm rpm: - 20 – 3000 L/total shaft (from flange plane): - 510mm Equipment selection similar series: code 208015-EM10P - Power 1.5 hp - stall torque 5.6Nm code 208025-EM14P - Power 2.5 hp - stall torque 9.0Nm code 208040-EM14P - Power 4.0 hp - stall torque 11.8Nm
