Pneumatic mixing station for 200 lt closed drums
The Airmation station allows the perfect mixing of products in closed drums with exclusive access from the upper mouth
(standard connection G 2” cap).
Pneumatic controls for management of lifting and lowering phases and complete agitator control with drum presence safety device.

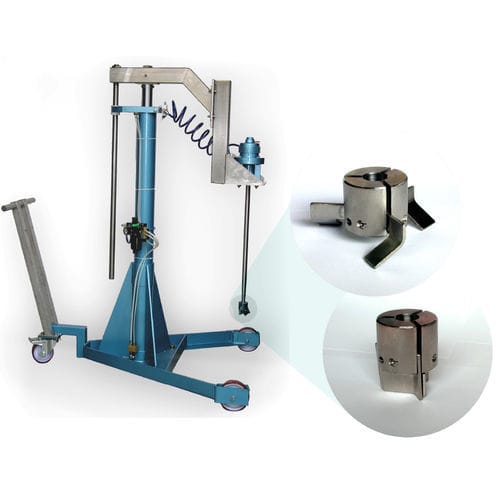

Equipment 209015-EM13P includes:
- Pneumatic agitator PM-RS015-V09 Stainless steel
- Pneumatic lifter 210740
- Transportable module for lift
Essential characteristics of equipment 209015-EM13P:
Central air connection c.: - G 3⁄8” (F)
Max motor power (@ 6 bar): - 1.5 hp
Stall Torque: - 5.6Nm
Engine supply air: - 2 – 6 bars
Pneumatic lift stroke: - 1100mm
Air consumption at max power: - 1.3 m³/min
Balanced propeller: - special
Rpm (empty): - 20 – 2000 mins
L/tot Shaft (from flange plane): - 855mm
