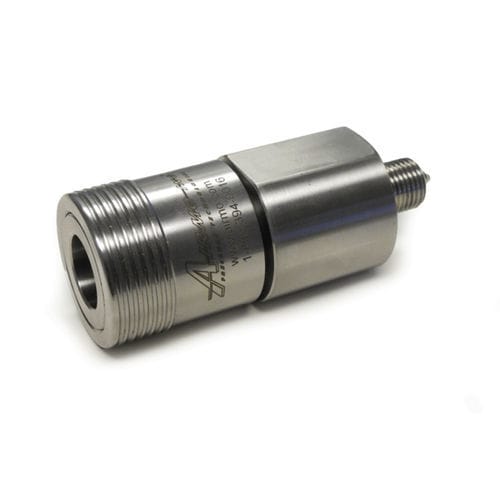

The patented NuQuip® Model QD Series High-Pressure Quick Disconnects ease coupling and de-coupling of tools designed for working pressures up to 60,000 psi (4,137 bar). Depending on the application, standard ports come in either medium or high-pressure models.
The Airmo Quick Disconnect is available in either valved or non-valved versions. The high-flow check valve configuration allows for minimal pressure drop. For increased operator safety, the unique self-locking coupler stays connected with the nipple under high-pressure. The optional handle eases automated coupling and de-coupling of tools.
Quick Disconnect couplers are precision-machined from stainless steel making them ideal for a variety of applications including: hydrostatic pressure testing, blasting, waterjet, or off-shore purposes. They can be used with a variety of services including water, oil, liquid nitrogen, other liquids and gases.
Specifications
Description
- Services: - Water, oil, liquid nitrogen, other liquids and gases
- Self-Locking Design: - Stays connected under high pressure
- Valved and Non-valved: - Low pressure drop valved design, or full-flow non-valved versions
- Ports: - NPT, M/P, M, MS, H/P
- Seals: - Multiple seal options
- Construction: - Precision-machined, heat-treated stainless steel
- Custom Options: - Custom designs considered
