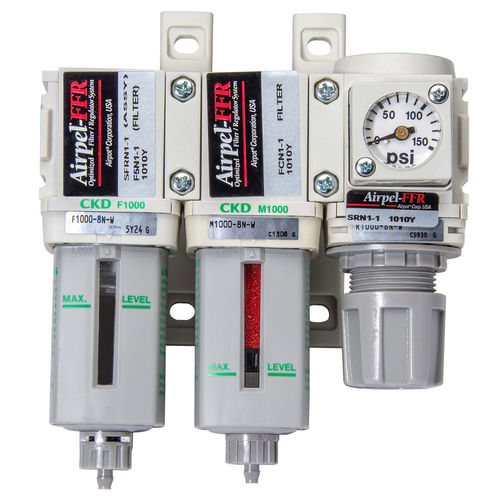

Air filter-regulator SFRN1-1
compressed aircoalescingcompact

air filter-regulator
air filter-regulator
air filter-regulator
Add to favorites
Compare this product


Characteristics

Designed for
air, compressed air
Filtration method
coalescing
Other characteristics
compact
Filtration size

0.01 µm, 5 µm

Operating pressure

Max.: 150 psi

Min.: 15 psi

Flow

150 l/min (39.626 us gal/min)

Description

Compact FFR Systems offer a 40mm x 40mm envelope per component in either standard or precision series. A simple two fastener attachment bracket system allows easy upgrading, maintenance and rearrangement of the modules. Port connections are available with NPT or G metric threads. Each system is equipped with dual filtration modules that remove particles, dust, oil, moisture and mist down to 0.01 micron assuring that the recommended quality of clean, dry compressed air is delivered to the actuators and cylinders. FFR gauges offer highly visible color zone indicators, field adjustable limit marks, flat face design gauge in the module made to JIS3 grade with either MPa or PSI readings.
