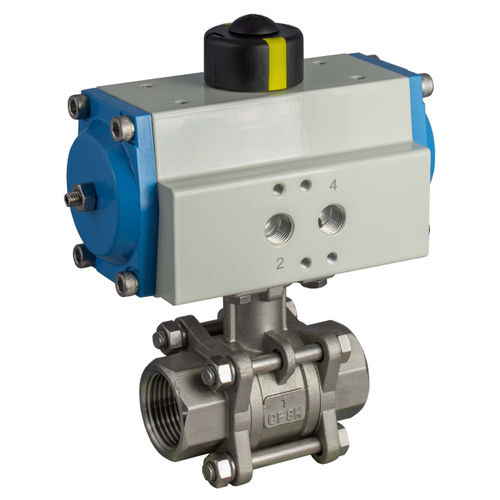

Stainless steel ball valve actuator PKM-55Ipneumatic90°double-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- 90°
- Configuration
- double-acting, single-acting
- Protection class
- ATEX
- Other characteristics
- ATEX, ball, stainless steel
- Torque
Min.: 15 Nm
(11.06 ft.lb)Max.: 100 Nm
(73.76 ft.lb)- Pressure
5 bar
(72.5 psi)- Ambient temperature
Min.: -50 °C
(-58 °F)Max.: 140 °C
(284 °F)
Description
3–piece ball valve / female thread, full bore, maintenance-free, replaceable
central part is already mounted, made of stainless steel with floating ball. The
valve is actuated pneumatically (double or single acting, rotation angle 90°) and
is marked by maintenance-free service life and high operational safety.
Designed for min. 5 bar control pressure.
