Online barcode verifier OMRON V275

2D1D

Overview

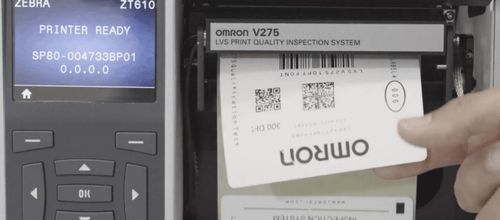

OMRON V275 is an inline code verification system designed to perform automated quality control of 1D and 2D barcodes and direct part markings (DPM) directly on the production line. It evaluates print and mark quality to ensure compliance with applicable industry standards.

Compatibility and integration
Distributed by AIS Vision Systems, the OMRON V275 integrates with industrial desktop printers, label applicators and industrial label printers (flexographic, offset and digital). The system supports inline installation and connects to production control and database systems for traceability.

Key features

• Certified verification according to GS1 and compliance with ISO/IEC 15415, ISO/IEC 15416 and other applicable standards; supports regulatory requirements such as FDA, UDI, FMD and French CIP.
• Verification of 1D/2D codes and DPM with automated pass/fail analysis per label.
• Extended label inspection: OCR/text validation, logo and field content verification, and detection of print imperfections.
• Adjustable illumination and imaging settings for different substrates and marking surfaces.
• Real-time reporting and exportable detailed quality reports with integration to external databases and communication systems.

Typical applications

• Inline quality control for pharmaceutical, food, automotive, electronics, logistics and label manufacturing to ensure traceability and regulatory compliance.

Technical specifications

• Supported codes: 1D, 2D and DPM
• Model: OMRON V275
• Manufacturer: OMRON
• Operation mode: inline (on-production-line) verification
• Standards and compliance: GS1, ISO/IEC 15415, ISO/IEC 15416; FDA, UDI, FMD, French CIP
• Functions: barcode verification, OCR/text analysis, detection of printing defects, field content validation, report generation
• Outputs: detailed quality reports, database export and system integration
• Illumination: adjustable according to material and surface
