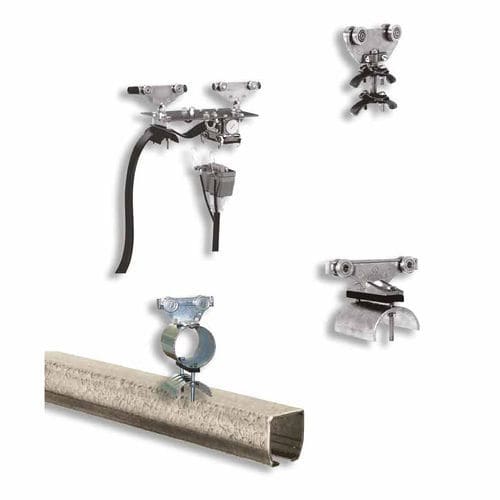

Flat cable festoon system R150

openaluminumstainless steel

Effective and economic systems for transporting your your valuable cables. AKAPP festoon systems offer a safe, effective and economic way for the electrical feeding of cranes, hoists and many more movable railbound machines. 1 Special shape of the C-profile prevents wear of the cable trolleys 2 Suitable for wall or ceiling mounting 3 Mobile pendant terminal boxes up to 36-poles for connecting control cables 4 Cable trolleys in Nylon, aluminium, steel and stainless steel applicable 5 Safe and reliable transport of the cable package AKAPP festoon system R150 for flat cables is versatile and provides an effective and economical method for feeding cranes, hoists and other moving rail-driven machines. Applications in- and outdoors possible. Suitable for travel speeds up to 60 m/min. Carrying capacity, when suspended at every 1 meter, is 80 kg/m. Length per profile 4000 mm. Standard performance zinc plated steel. Also available in blank steel, dichromated steel and stainless steel. Applications Bridge- ad portal cranes (power and/or control) Assembling- and other werk stations Monorails Transport systems Data transmission systems Production lanes, workstation equipment Akapp-Stemmann has a wide range of Festoon systems for flat cables.Festoon system R150 is suitable for light applications. • Optimal reliability due to the solid construction and effective shape of all components. • Practically no maintenance AKAPP C-profile prevents inconvenient deposition of moisture and dirt on the running surface. • Longer life cycle of your cables and hoses AKAPP Festoon systems let your cables and hoses move smoothly, without twisting and tangling.
