Easy hose/sleeve replacement!
Easy to clean!
No dead spots!
Completely free flow of product → no pressure loss + no clogging!
Robust for the toughest demands!
Top price performance!
Typical application area for pipe manometers
Powders and liquids
highly abrasive materials (such as cement, lime, plaster, flour)
highly viscous materials (such as paste, sirup, muds)
Function of Pipe Manometer
With the Pipe manometer, the pressure within a system is transmitted to the pressure indicator or manometer by a mediator liquid, between the elastomer sleeve and the body.
The pipe maometer RDM can establish pressures of up to 70bar. It is made of a robust steel body and steel retaining rings, all of which are epoxy powder-coated in RAL9010.
Structural design of Pipe Manometer

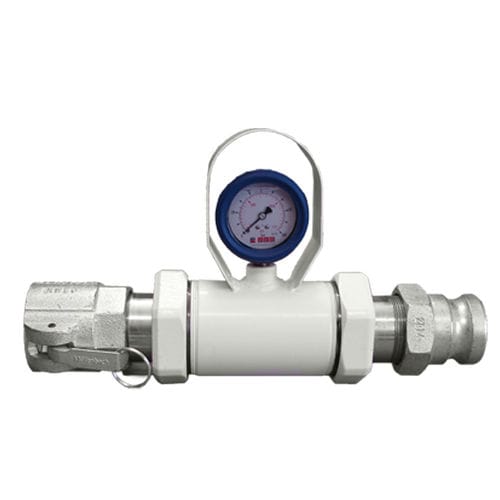

The RDM series are available with an external thread connection (1", 1 ¼" and 2") or an optional male + female hose coupling. Furthermore, the VF series air pinch valve can be fitted out as Pipe manometer with a mediator liquid and pressure indicator or manometer. Pressures of up to 8bar (depending on the nominal diameter) can be established with the VF Series Pipe Manometer (DN40-DN250).
