Energy consumption probe BSC1163

opticalprocessUSB

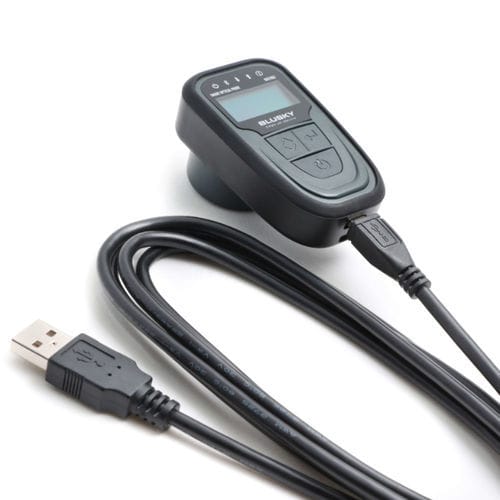

BSC1163 smart bluetooth optical probe is distinguished from its competitors by its meter reading and recording capability without the need of an external hand terminal. You can read approximately 500 electricity meters without using the handheld terminal and then transfer data to the computer. It complies with Bluetooth 2.1 + EDR and IEC62056-21 standard. It uses to read closely the electricity meters with portable computers, hand held terminals, tablets and smart phones. You can use it with Windows, Windows Mobile, Android operating systems. You can follow all processes with 5 status leds and OLED display on it. BSC1163 creates a virtual com port on your portable devices. You can easily start using it with the software that will be prepared for it. Our optical ports contain N36 or N38 magnets and are very well integrate with the electricity meters. Thanks to low energy consumption, you can read 12.000 electricity meters in one charge. You can easily charge the optical probe with your computer or 1A / 5V power supply. You can update the firmware and configure all settings with USB. With our quality sensors and amplifiers, you can read almost all electricity meters of the relevant standard. It provides transparent communication and IEC62056-21 Mode C solution together. It automatically switches the communication speed according to IEC62056-21 Mode C standard. It is resistant to falling thanks to external silicone protection. It helps you reach your electricity meter with led torch feature in dark working areas . The wristband prevents the optical probe from falling from your hand. With the buttons on it you can make all the settings and start the meter reading process.
