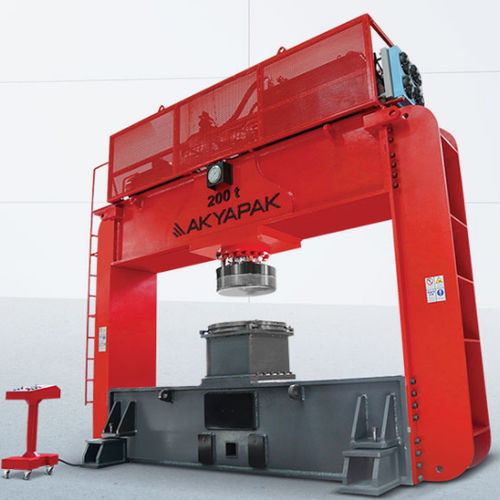

Hydraulic press BMB-P 200

formingframeprocess

AKYAPAK exposes its experience in all metalworking and forming areas. AKYAPAK, being conducting research for higher quality solutions to dishing and flanging industry, is also really assertive with its dishing and flanging machines in this sector. BMB-P dishing presses are one of the most demanding models in the large range of AKYAPAK. It is a hydraulic press consists of manipulator (option) and HEAVY DUTY machine like all the others. The 250 Tons and bigger capacity presses are developed with pre-stressed tie-rods and lower ones are having side shoulders as the price&performance is main target for all size of tank manufacturers on all over the world. The correct capacity of model is being choosed based on the material thickness, quality and plate diameter. The BMB-P models dishing press power is calculated for biggest diameter of dies to give best cycle time and productivity to the customer. The main control screen is developed focus on user friend interface to reduce learning time since the operator skill is always important for all manufacturers. STANDARD FEATURES The frame of the machine is made by high alloy steel and MIG welded. The frame is also stress releived to process to have tighter tolerances after welding operation The dies are made of special steel with heat-treated A special primer applicated on all body before painting for a long term corrosion resistance Safety barriers and stair on the machine is used to enable maintenance Cyinder, body and piston groups are heat-treated and chromium plated Minimum number of lubricating points are used by using self-lubricated components
