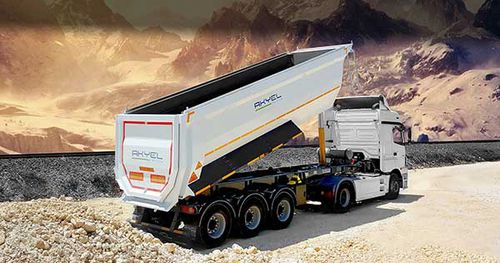

Dump semi-trailer U-Type

for bulk materials3-axle2-axle

U-Type Tipper Dump trailers are designed for hard work, better suited for rocks, gravel, sand, soil, coal etc., rather than large rocks and boulders which are better suited for the heavy duty Box-Type trailers which also have vertical reinforcements. They are also used for transportation of light and bulky cargoes of grain crops (wheat, rye, rice, oats, corn, etc.) for medium and long distances. AKYEL U-Type trailers are designed and manufactured with 2,3 or 4 axles with different size trailers, bodies, and volume capacity accordingly. CHASSIS: High tensile structural steel ‘I’ cut beams and cross memebers AXLE: 3 X 12 ton axles with drum or disk brakes and liftable front axle SUSPENSION: Air spring suspension system LANDING GEAR: 25 ton mechanical landing gear HYDRUALICS: HYVA type system BRAKES: 2S/2M EBS Electronic Braking System BODY: High tensile structural steel TYRES: 385/65 R 22.5 Tubeless tires with 11.75 R 22.5 Rims ELECTRICS: 24V 2×7 pin sockets electrical system with LED lights BUFFER: Foldable rear buffer LADDER: 2 aluminium ladders at both sides of front of body PAINT: 2 coats of Epoxy high rust resistant primer undercoat, 2 coats of acrylic paint. STANDARD ACCESSORIES: Side underrun protection, spare wheel holder (spare wheel optional), toolbox, food box, water tank, wheel chock, wheel brace.
