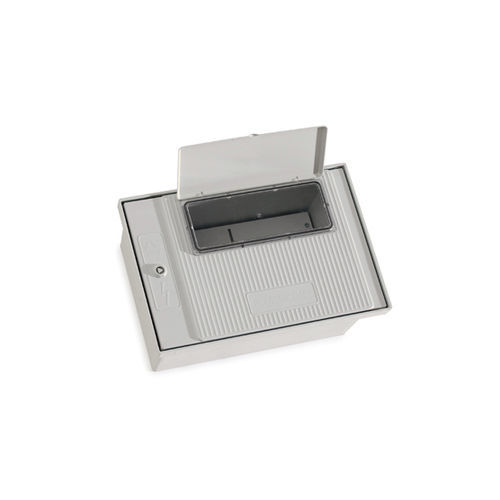

Single-phase protection box 06C2CM

Surface assembled or recessed box for 2 single-phase meter. Box, assembly plate and cover in reinforced polyester with grey self-extinguishing fibreglass, RAL 7035. Transparent anti-UV polycarbonate display. Display cover in RAL 7035 grey ABS. Black polyurethane sealant. EN 62208 IP44 IK08 Triangle lock in polyamide 6 gray RAL 7035. Insulation voltage: 600V Insulation category: Category II Temperature range supported by the housing: -25ºC to +60ºC. Thermal dissipation capacity: 28W Operating temperature: -25ºC a 35ºC. Maximum humidity: 100%hr a +25ºC. For integrated assembly, after the process of construction of the assembly surfaces. This product was developed for the application of 2 single-phase meter so they must be assembled on the assembly plate supplied. No heavy items must be placed on the box lid. The maximum weight of the equipment inside the box must not exceed 280 kg/m2.
