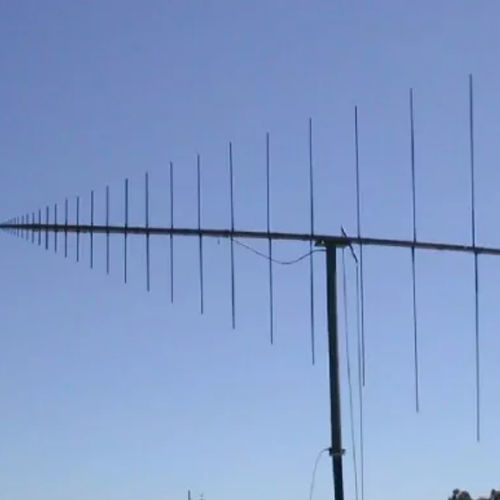

Radio antenna LPDA-A0047

directionalcompact

The LPDA-A0047 is a directional LPDA monitoring antenna primarily designed for EW monitoring applications to cover the 30 MHz to 2500 MHz frequency band with a typical gain of 7 dBi. The polarisation is adjustable between vertical and horizontal without lowering the mast. This antenna is supplied with a boom that breaks into three sections and all the elements can be removed and stored in a roll-up canvas bag for compact storage. The antenna can be assembled and erected within 10 minutes by two people. This antenna can be customised if required, for different frequency ranges handling. Dimensions (m) - - 4000 mm wide5000 mm long - Mass (kg) - - 38 - Maximum VSWR - - < 2 - Polarisation - - Adjustable: vertical and horizontal - Size (m) - - 5
