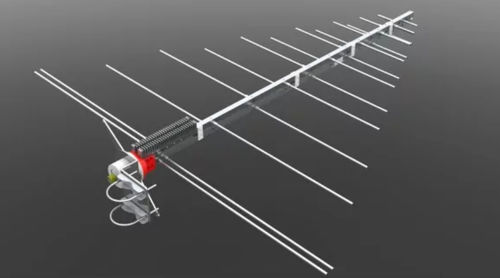

Radio antenna LPDA-A0030

directionalpassive

The LPDA-A0030 is a directional high-power LPDA that covers the 100 to 500 MHz frequency band at 1 kW of feed power with a typical gain of 7 dBi. It is primarily designed for EW and high power transmit applications. Polarisation is adjustable between vertical and horizontal without lowering the mast via a swivel mounting bracket. This antenna can be customized for frequencies in a wideband of frequencies with excellent gain, VSWR and higher power handling. Dimensions (m) - - 1700 mm wide1920 mm long - Mass (kg) - - 7 - Maximum VSWR - - 1.5 - Polarisation - - Linear, adjustable, vertical and horizontal - Power Handling (W) - - 1000 - Size (m) - - 1.92
