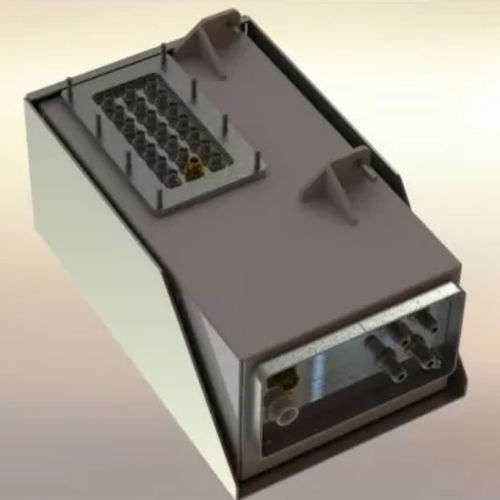

Panel-mount housing DF-A0057

rectangularoutdoorantenna

The DF-A0057 is a waterproof box designed for housing of our range of DF switches. It allows the switches DF-A0050, DF-A0052, DF-A0054, DF-A0058, DF-A0064 or DF-A0137, which are intended for indoor mounting, to be mounted to the DF-A0001, DF-A0007, DF-A0038, DF-A0062 or DF-A0136 antennas. The DF switch has a mounting arrangement compatible with most Alaris mast-mount DF antennas. The TNC connections to the DF antenna are protected from the weather. The output N-type connectors, and power/data connectors, are also protected by a drip lip. Standard control of the switch inside is by RS485. Ethernet and Fibre-Ethernet converter options are also available. This product should be ordered together with the required RF switch, and will be supplied fully integrated and tested. Active / Passive - - Active - Dimensions (m) - - 458 mm long281 mm wide 201 mm high - Mass (kg) - - 8.2 - Size (m) - - 0.458 - 1. End Frequency (MHz) - - 6000 - 1. Start Frequency (MHz) - - 1
