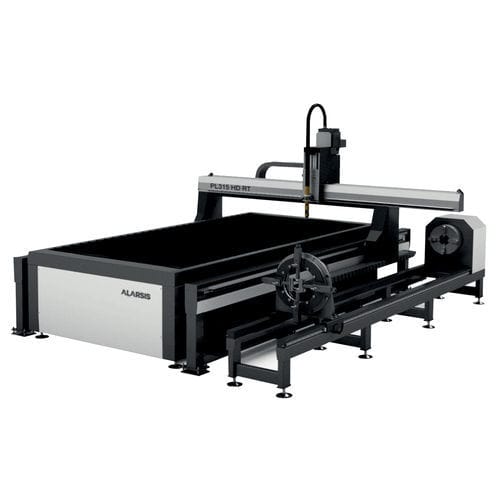

Plasma cutting machine PL 315 HD RT

for steeltubesheet

New high production model for high definition HD plasma cutting of steels for both round and square sheet and tube and tube both round and square. Available in standard and custom sizes, with sectorised and automated fume extraction table. with sectored and automated fume extraction table. With integrated height control (THC) with Kjellberg plasmas, it is the perfect system for steel cutting, where high quality finishes and large thicknesses are required. GENERAL SPECIFICATIONS Chassis of monobloc steel table, sectored and automated for smoke extraction. Lower trays for cleaning and collection of small parts. Lathe for rectangular and round tubes. Independent axis gantry. Remote control keyboard. 25mm linear guides with watertight recirculating ball bearing slides. High quality ground helical racks transmission. Japanese SanyoDenky 70Kg/cm servomotors with 3:1 reduction gears. Automatic self-lubrication on all axes. Travelling speed 60 metres/min. Resolution 0,01mm. Z head with THC height control integrated in CNC control. Torch anti-collision system. Laser pointer for X,Y axes zero setting verification.
