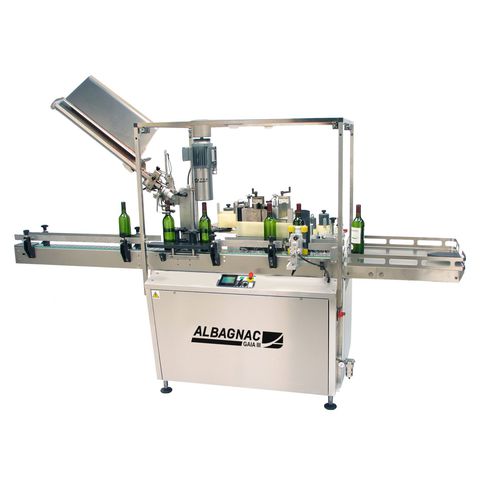

Automatic labeler GAIA III VIN TRANQUILLE

for bottlesfor the wine industrywith capsuling system

The GAIA III labelling machine, thanks to its technology combined with simplicity of setting, allows an impeccable quality of work. Its digital control gives it unequalled application precision. Thanks to its many options, it adapts perfectly to all the different production methods. It has “key” functions such as: A large capacity inclined capsule magazine, an interchangeable cup for all types of capsules, three additional labelling stations, and has a tilt setting of the stations for conical bottles. Cadence: • Up to 1,800 Bottles/hour Dimensions of the machine: • Length: 2,565 mm • Width: 1,029 mm • Height: 2,200 mm Possible options: • 2nd labelling station • 3rd station (2 tilts) • 4th labelling station (1 tilt) • Body label height 210 mm or 290 mm • Stations tilting for conical products • Electric height setting of the stations • Cap dispenser • Large capacity tilted magazine • TS8 roller leveller capping • Heat shrinkable capping • Bottles orientation: bottom notch or (and) optics or (and) moulding joint • Automatic stopping of the application at the end of the label roll • Printing system integration • Large capacity exit table • Electronic speed controller
